TL;DR:

Three USB DVB devices, one Debian box with a mainline kernel, and three completely different ways to get a driver working in 2026:

• Dektec DTU-315 (modulator): driver from the Dektec website (LinuxSDK).
• TBS5530 (multi-standard tuner): out-of-tree driver from a community repo.
• PCTV 461e / WinTV-NOVA-S2 (DVB-S2 tuner): had to patch the kernel myself.

In the end all three work, and I captured live Turksat 42E transponders with the two tuners and looped a TS file out of the modulator. This post is the long version of how.

Why this post

A couple of years ago I wrote about each of these devices separately (DTU-315, TBS5530). Since then I moved to Debian (forky/sid) running a self-built mainline kernel (7.0.0-...-dcn31fix), and the driver story changed for every single device. So this is a 2026 refresh: same hardware, new OS, new kernel, new gotchas.

My goal this time was a bit bigger: drive all three devices from one machine so I can capture live satellite TS with the tuners and play back TS files through the modulator (a self-contained RF loopback on the bench).

Here are the three devices:

DTU-315 (DVB modulator):

TBS5530 (DVB-S/T/C tuner):

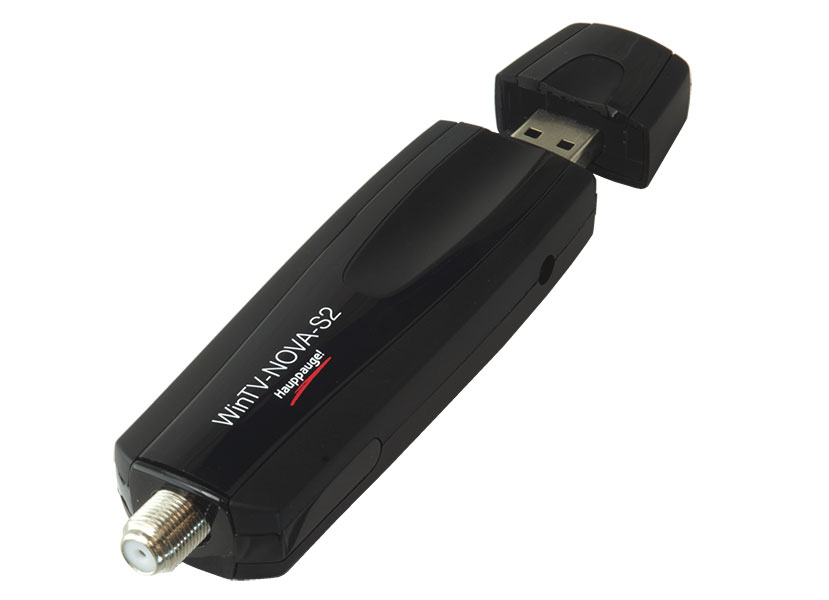

WinTV-NOVA-S2, also sold as PCTV 461e (DVB-S2 tuner):

Device 1: DTU-315 - driver from the Dektec website

Last time I used the tsduck/dektec-dkms GitHub project for the kernel module. Don’t do that anymore. That project is now archived, and its README says it all:

Starting with version 2024.06.0, the Dektec LinuxSDK includes its own DKMS installation and this specific project is no longer necessary.

Its last release does not even compile on a modern kernel. The correct source in 2026 is the Dektec LinuxSDK, downloaded straight from the Dektec website:

# https://www.dektec.com/products/SDK/DTAPI/Downloads/LinuxSDK_v2026.05.0.tar.gz
tar xzf LinuxSDK_v2026.05.0.tar.gz       # creates ./LinuxSDK/
cd LinuxSDK/Drivers
sudo ./Install_Dtu                       # DKMS install of the Dtu USB driver

The SDK ships the driver source, its own DKMS scripts, and the DTAPI C++ library (precompiled) that TSDuck’s dektec plugin needs later. One annoyance: the SDK’s Install script has a buggy kernel-headers precheck:

[[ -d "/lib/modules/$KERNEL/build/kernel" ]] || error "kernel headers are not installed"

Debian’s linux-headers packages don’t ship a build/kernel/ subdir, so this wrongly fails even though the headers are fine and the module builds. I changed it to a correct check:

[[ -f "/lib/modules/$KERNEL/build/Makefile" ]] || error "kernel headers are not installed"

That’s the only change needed; the driver itself compiles cleanly on kernel 7.0.0. After that:

$ sudo modprobe Dtu
$ dmesg | grep Dtu
Dtu: The Dtu driver V4.15.5.93 has loaded successfully.
Dtu: < EzUsbInit > FX3 firmware uploaded
usbcore: registered new interface driver Dtu
$ ls -l /dev/Dtu*
crw------- 1 root root 180, 4 ... /dev/Dtu4

The DTU-315 is a Cypress FX3 device; the driver uploads the FX3 firmware and creates /dev/Dtu4. Done.

One hardware gotcha: when the DTU-315 starts actively modulating it draws noticeably more current. On a bus-powered USB hub it browned out and dropped off the bus with DTAPI_E_EVENT_POWER mid-stream. Moving it to a direct, self-powered USB port fixed it completely.

Device 2: TBS5530 - out-of-tree community driver

There is still no mainline driver for the TBS5530. TBS’s own linux_media fork used to crash for me (I had to patch an array-overflow last time). This round I used the cleaner community driver koreapyj/cxd28xx (Sony CXD2878 + Montage M88RS6060), which builds out-of-tree via DKMS:

git clone --depth 1 https://github.com/koreapyj/cxd28xx.git
cd cxd28xx
make
sudo dkms add .
sudo dkms build  cxd28xx/0.0.1
sudo dkms install cxd28xx/0.0.1 --force

Like every TBS device, it needs firmware or the probe fails with Direct firmware load for dvb-usb-id5530.fw failed with error -2:

curl -fL -o tbs-fw.tar.bz2 \
  http://www.tbsdtv.com/download/document/linux/tbs-tuner-firmwares_v1.0.tar.bz2
mkdir -p /tmp/tbs-fw && tar xjf tbs-fw.tar.bz2 -C /tmp/tbs-fw
sudo install -m644 /tmp/tbs-fw/dvb-usb-id5530.fw \
                   /tmp/tbs-fw/dvb-demod-m88rs6060.fw /lib/firmware/
sudo modprobe -r tbs5530; sudo modprobe tbs5530

Nice surprise: it compiled cleanly on kernel 7.0.0 with no source patching this time. After the cold->warm firmware cycle:

dvbdev: DVB: registering new adapter (TurboSight TBS 5530)
i2c: Detect CXD2878/CXD6802(SiP) chip.
DVB: registering adapter 0 frontend 0 (... DVB-T/T2/C/C2,ISDB-T/C,ATSC,J83B,ATSC3)
i2c: found a 'Montage m88rs6060' ... warm state, firmware version:30
DVB: registering adapter X frontend Y (TurboSight TBS 5530 DVB-S/S2/S2X)
tbs5530: TurboSight TBS 5530 attached

You get two frontends: one for DVB-T/T2/C/ATSC and one for DVB-S/S2/S2X. This device was the most painless of the three.

Device 3: PCTV 461e / WinTV-NOVA-S2 - patch the kernel

This is the one that ate a whole evening. The stick (USB id 2013:0462) is the 461e v3 / “BBH9” revision. It looks identical to the older one, but Hauppauge quietly swapped the demodulator from the Montage M88DS3103B to the newer M88DS3103C. That tiny change means:

• the in-tree m88ds3103 driver does not know the C revision, and
• the USB id 2013:0462 is not in the em28xx device table.

So on a stock kernel the stick shows up in lsusb but no driver binds and no /dev/dvb/adapter* appears.

Support was only submitted to linux-media on 2026-03-17 by Bradford Love (two patches: m88ds3103: Implement 3103c chip support and em28xx: Add Hauppauge 461e v3). It has since landed in the mainline tree, but it is not in the v6.17 / v7.0 tags, so my kernel didn’t have it. Since I build my own kernel anyway, I applied the two patches and rebuilt:

0002-m88ds3103-Implement-3103c-chip-support.patch    # the whole 3103c code path
0003-em28xx-Add-Hauppauge-461e-v3.patch              # board entry + 2013:0462 id

And - this is the step everyone forgets - the demod firmware is never bundled in the kernel; you install it by hand:

sudo curl -fL -o /lib/firmware/dvb-demod-m88ds3103c.fw \
  https://hauppauge.s3.us-east-1.amazonaws.com/linux/dvb-demod-m88ds3103c.fw

After a reboot into the patched kernel the whole chain comes up:

em28xx 1-3:1.0: Identified as PCTV DVB-S2 Stick (461e v3) (card=108)
ts2020 ...: Montage Technology TS2022 successfully identified
a8293 ...: Allegro A8293 SEC successfully attached
em28xx ...: DVB: registering adapter 0 frontend 0 (Montage Technology M88DS3103C)
m88ds3103 ...: downloading firmware from file 'dvb-demod-m88ds3103c.fw'
m88ds3103 ...: firmware version: 3.8

Full chain: em28178 USB bridge + m88ds3103c demod + ts2022 tuner + a8293 LNB power controller. /dev/dvb/adapterN finally appears.

Two gotchas that looked like driver bugs (but weren’t)

I spent a long time chasing “no lock” on the 461e, so let me save you the pain.

Gotcha A - is the LNB actually powered? Connected directly to a dish, the 461e has to power the LNB itself through its A8293 chip. When it didn’t lock, I suspected the LNB power path. So I grabbed a multimeter and measured the voltage right at the F-connector while forcing the driver to command 13 V and then 18 V:

Both healthy - so the SEC/LNB power was fine and the driver was innocent. (A multimeter is an underrated DVB debugging tool.)

Gotcha B - DVB-S vs DVB-S2. This was the real culprit. On Turksat 42E some transponders are DVB-S2 (8PSK) and some older ones are plain DVB-S (QPSK). DVB-S is always QPSK. I had two transponders listed as DVB-S2 in my notes that are actually DVB-S. If you tell the demod to look for DVB-S2 on a DVB-S carrier, it tunes, sees signal, but never locks - which looks exactly like a demod bug. Set the correct delivery system and it locks instantly.

Testing with real signals

With everything up, I tuned my four reference Turksat 42E transponders. I used dvbv5-zap for raw lock/quality and a small TSDuck-based helper for recording. A working DVB-S2 channel file looks like:

[TRT_HD]
	DELIVERY_SYSTEM = DVBS2
	FREQUENCY = 11054000
	POLARIZATION = VERTICAL
	SYMBOL_RATE = 30000000
	INNER_FEC = 3/4
	MODULATION = PSK/8
	SAT_NUMBER = 0

and a DVB-S one (note DVBS + QPSK):

[TRT_SD]
	DELIVERY_SYSTEM = DVBS
	FREQUENCY = 11096000
	POLARIZATION = HORIZONTAL
	SYMBOL_RATE = 30000000
	INNER_FEC = AUTO
	MODULATION = QPSK
	SAT_NUMBER = 0

A healthy lock reports something like:

Lock   (0x1f) Signal= -79.03dBm C/N= 13.42dB postBER= 0

Results on the PCTV 461e (all four lock and record, both with a direct LNB and through a multiswitch on DiSEqC port A):

The TBS5530 locks the same transponders on its DVB-S/S2 frontend. And for a fully self-contained bench test, I played a captured TS file out of the DTU-315 (as DVB-S2 8PSK on an L-band IF) straight into the TBS5530’s tuner input - a closed RF loopback with no dish involved. The re-captured stream carried the same TS id and service list as the source, which is exactly what you want to confirm the play -> modulate -> demodulate -> capture path end to end.

Takeaways for 2026

• DTU-315: get the driver from the Dektec LinuxSDK (the old dektec-dkms project is dead). Power it from a real USB port, not a bus-powered hub.
• TBS5530: still out-of-tree; the koreapyj/cxd28xx driver builds cleanly and needs the TBS firmware files.
• PCTV 461e v3: needs a kernel new enough for m88ds3103c + 461e v3 (mainline has it now, but not in v6.17/v7.0), plus the dvb-demod-m88ds3103c.fw firmware. The driver is fine; watch out for LNB power and DVB-S-vs-DVB-S2.
• A multimeter and being honest about your transponder parameters will save you hours of blaming the driver.

Once each device is up, they are just standard Linux DVB/Dektec nodes, so TSDuck can capture, analyze and modulate transport streams across all of them - which is exactly the toolbox I was after.
